Pocket Wizard MultiMAX Transceiver
[PWMM]

$352.00

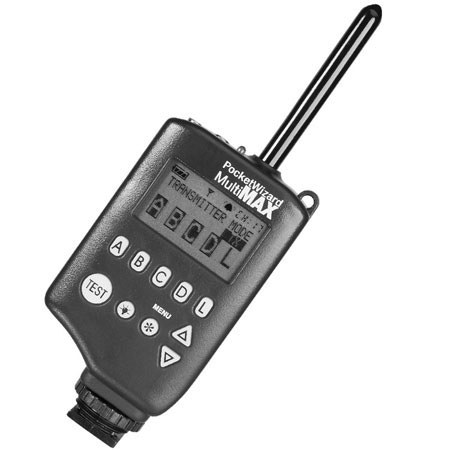

PocketWizard MultiMAX Transceiver

Yes!..We are now an Authorized Australian Stockist of the Pocket Wizard, Covered By Australian Warranty and service

Accept Nothing Less!!!

Description

The PocketWizard MultiMAX Transceiver features Wireless Transceiver Technology, which eliminates the need for a separate transmitter and receiver setup. Each MultiMAX provides the capability to send and/or receive digital signaling by a flip of a switch, similar to personal communicators. Among many advantages, a photographer can select between a transmitter or receiver mode as shooting assignments change.

The MultiMAX is the only radio system that offers True Trigger Confirmation feedback, up to 1600 feet away or more, without the need for signal repeaters or daisy-chained radios. Selecting which camera or flash zone fires is as easy as pressing a button in "Selective Quad Triggering" mode. The MultiMAX automatically confirms radio triggering on every zone simultaneously, with immediate visual and audible feedback on the MultiMAX (set for transmitter).

Utilizing LPA Design's patented microprocessor and software technology, the MultiMAX comes loaded with "Trigger Time Control" software. Used independently or with another PocketWizard, the MultiMAX provides several unique advanced tools for the working professional, all in one small package. With the "Trigger Time Control" software, it's easy and very convenient to create rear curtain sync effects with any camera, add depth of field using multi-pop mode, record events as they unfold using the intervalometer mode and much more.

As with all PocketWizard Digital Radio Receivers, the PocketWizard MultiMAX is fully compatable with Sekonic's L-608 and L-358 exposure meters configured with the plug-in digital radio transmitter module. Now, you can trigger electronic flash units and/or cameras with your Sekonic L-608 or L-358 meter and PocketWizard Digital Radio Receivers.

The MultiMAX provides the capability to send or receive digital signaling by a flip of a switch, eliminating the need for a separate transmitter and receiver. Easy to read backlit LCD panel indicates which mode the MultiMAX is set for in all lighting conditions.

Because the MultiMAX is a true transceiver, it can automatically confirm radio triggering. Radio triggering confirmation status is indicated on the MultiMAX's (set for Transmitter mode) display panel, up to 1600 feet away or more in all Quad-Triggering zone.

The MultiMAX incorporates microprocessor controlled full digital communication with built-in selectable 32 complex (16/24 bit) digitally coded channels.

More than just a radio slave, the MultiMAX offers advanced features that make today's incredible images possible.

Features

Wireless Transceiver Technology

True Trigger Confirmation

Selective Quad-Triggering

Digital Radio Technology

Rear Curtain Sync

Precision Delays

MultiPop (Mulitple Flash Exposures)

Intervalometer

SpeedCycler

Lag Time Equalizer

Relay Mode

Specifications

Range	1600 feet or more
Frequency	344MHz (Standard Triggering) 346.5-354MHz (Quad-Triggering)
Code	Complex 16/24 bit digitally coded signals
Channels	32 Digitally coded ID#'s 16 Original Classic Channels 16 Quad-Triggering Channels
Synch Speed	Up to 1/250 (focal plane) Up to 1/500 (leaf shutter) Up to 1/1000 (Fast Mode)
Batteries	2-AA batteries 150 hour life
AC Adapter	Optional AC adapter Cat# 804-105 (PW-AC-2) 3 VDC unregulated, 0.3 A (300 milliamp) or higher 4.5 VDC regulated, 0.2 A (200 milliamp) or higher, (recommended)
Housing	Custom molded high impact plastic with captive battery door
Weight	5.4 ounces (w/ alkaline batteries)
Dimensions	Height: 4.0" (body only) Flexible Antenna: 2.4" Width: 2.1" Depth: 1.4"
Input/Output	3.5mm (1/8") mono miniphone jack
Operating Temperature	Above -15° C (5° F) and below 50° C (120° F)
Maximum Input Voltage	250 VDC
Camera/Port 1	0.5 A (1/2Amp), current limited
Flash/Port 2	4.0 A for 0.00002 seconds (1/50000 seconds or 20 microseconds) 0.25 A (1/4 Amp or 250 milliamp) continuous, current limited
Voltage Present	For Port 1 and Hot Shoe = 3.3 VDC, 0.001 A (1/1000 Amp or 1 milliamp), regulated
Trigger Threshold	Less than 2.2 volts
Mounting	Hot Shoe, ¼-20 female threads, lanyard and Velcro
Time	Settings
Contact Time	640.00 seconds or 10 minutes, 40 seconds (min .01 sec)
Delay Time	6.4000 seconds (min .0001 sec)
Intervalometer	64000 seconds or 17 hours, 46 minutes, 40 seconds (min 1 sec)
MultiPop	640.00 seconds or 10 minutes, 40 seconds (min .01 sec)
Accuracy	Timing is repeatable within ± 1/10,000th of a second
Counter	9999 triggers (min 0)
Preset Rear Curtain Delays	1, 1/2,1/4, 1/8, 1/15, 1/30 and 1/60th shutter speed
